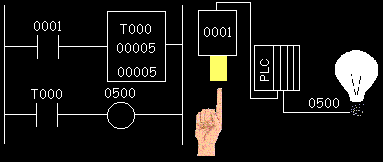

In the example above, when the operator
pushes button 0001 the timer starts ticking. When the accumulated value reaches
0 the timer contacts (T000) will close and output 0500 becomes true. When the
operator releases the button (0001) the accumulated value changes back to the
preset value.(i.e. it resets)
